Micropython ESP32 C3连接GM12864屏幕ST7576驱动IC芯片

一、目的

这一节我们来学习如何使用合宙ESP32 C3，连接128x64点阵屏模块SPI接口液晶屏带字库，进行显示实验。

二、环境

ESP32 C3开发板（MicroPython v1.19.1 on 2022-06-18）+12864点阵屏模块 + 几根杜邦线 + Win10商业版

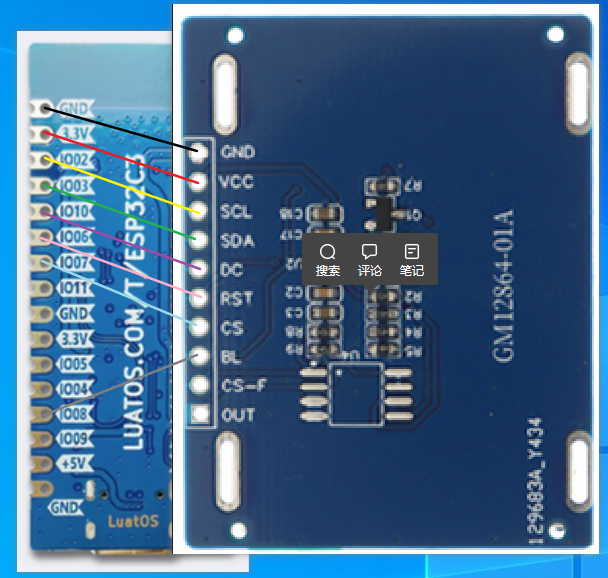

ESP32 C3和屏幕模块接线方法：

————————————————

main.py

from machine import Pin,SPI,PWM
from st7567 import ST7567
from ufont import BMFont
import time

# 导入字库文件
font = BMFont("fonts/unifont-14-12888-16.v3.bmf")

# 创建SPI对象
spi = SPI(1,baudrate = 40_000_000,sck = Pin(2),mosi = Pin(3),miso = None)  # 波特率最大60兆
# 定义屏幕背光参数
blk = PWM(Pin(8),duty = (0),freq = (1000))
# 创建LCD屏幕对象。# invX内容反转，0x00或0x01 # invY显示反转，True或False
lcd = ST7567(spi,dc = Pin(10,Pin.OUT),cs = Pin(7,Pin.OUT),rst = Pin(6,Pin.OUT),invX=0x00,invY=True,invdisp=0x00)

# main函数
def main():
    # 设置屏幕背光
    num = 50
    blk.duty(int(num/1000*1023))

    # 显示中文
    font.text(lcd,"魔都欢迎你",16,0,color=1,font_size=16,reverse=False,clear=False,show=True,half_char=True,auto_wrap=True)
    # 显示一条横线
    lcd.hline(0,20,128,1)
    lcd.show()

    while True:
        # 动态化显示数值
        for i in range(100):
            font.text(lcd,"数字:%.2d"%i,26,24,color=1,font_size=16,reverse=False,clear=False,show=True,half_char=True,auto_wrap=True)
            font.text(lcd,"Number:{0:2}".format(i),26,40,color=1,font_size=16,reverse=False,clear=False,show=True,half_char=True,auto_wrap=True)
            time.sleep(0.5)

# 程序入口
if __name__ == "__main__":
    main()

st7567屏幕驱动

st7567.py

#Micro Python ST7567 128*64 lcd driver
#You may need to set elecvolt and regratio to drive your screen properly

from micropython import const
import framebuf
import time

SET_BIAS  =const(0xA2)
POWER_CTRL=const(0x28)
SET_BOOST =const(0xF8)
SOFT_RST  =const(0xE2)
SEG_DIR   =const(0xA0)
COM_DIR   =const(0xC0)
REGU_RATIO=const(0x20)
EVSET_MODE=const(0x81)
DISP_ONOFF=const(0xAE)
INV_DISP  =const(0xA6)#0:normal display 1:inverse
ALL_PIX_ON=const(0xA4)
SRTLIN_SET=const(0x40)#40~7F
PAGEAD_SET=const(0xB0)#b0~b8
COLHAD_SET=const(0x10)#0x10~0x1F
COLLAD_SET=const(0x00)#0x00~0x0F

class ST7567(framebuf.FrameBuffer):
    def __init__(self,spi,dc,cs,rst,elecvolt=0x1F,regratio=0x03,invX=0x00,invY=0x00,invdisp=0x00):
        dc.init(dc.OUT,value=0)
        cs.init(cs.OUT,value=1)#disable device port
        rst.init(rst.OUT,value=0)#reset device
        self.dc=dc
        self.cs=cs
        self.rst=rst
        self.spi=spi

        self.EV=elecvolt
        self.RR=regratio
        self.invX=0x00 if(invX==0) else 0x01#0x00:MX=0 normal dir, 0x01:MX=1 reverse dir
        self.invY=0x00 if(invY==0) else 0x08#0x00:MY=0 0x08:MY=1
        self.invdisp=0x00 if(invdisp==0) else 0x01
        self.buffer=bytearray(128*64//8)
        super().__init__(self.buffer,128,64,framebuf.MONO_VLSB)

        time.sleep_ms(1)
        self.rst.value(1)
        time.sleep_ms(1)#reset done
        self.initscreen()
        time.sleep_ms(50)
        self.fill(0)
        self.show()
        self.write_cmd(DISP_ONOFF|0x01)#1:display on normal display mode

    def initscreen(self):
        self.write_cmd(SOFT_RST)#optional, I think it's useless
        self.write_cmd(SET_BOOST)#set booster mode
        self.write_cmd(0x00)#boost: 0x00:x4 0x01:x5
        self.write_cmd(SET_BIAS|0x01)# 0:1/9 1:1/7
        self.write_cmd(EVSET_MODE)#put device into EV setting mode
        self.write_cmd(self.EV)#0x00~0x3F set contrast to 0x1f with last command
        self.write_cmd(REGU_RATIO|self.RR)#0x00~0x07 3.0~6.5
        self.write_cmd(POWER_CTRL|0x07)#7:{booster on,regulator on,follower on}
        self.write_cmd(INV_DISP|self.invdisp)#normal display
        self.write_cmd(ALL_PIX_ON|0x00)#0x00:normal display 0x01:all pixel on
        self.write_cmd(SEG_DIR|self.invX)#0:MX=0 normal dir, 1:MX=1 reverse dir
        self.write_cmd(COM_DIR|self.invY)#0x00:MY=0 0x08:MY=1 (may change to reverse y)

    def write_cmd(self,cmd):
        self.cs.value(0)#enable device port
        self.dc.value(0)#cmd mode
        self.spi.write(bytearray([cmd]))
        #time.sleep_ms(1)
        self.cs.value(1)#disable device port

    def write_data(self,data):
        self.cs.value(0)#enable device port
        self.dc.value(1)#display data mode
        self.spi.write(data)
        #time.sleep_ms(1)
        self.cs.value(1)#disable device port

    def show(self):
        self.write_cmd(DISP_ONOFF|0x00)
        self.write_cmd(SRTLIN_SET|0x00)
        colcnt=0
        pagcnt=0
        while (pagcnt<9):
            self.write_cmd(PAGEAD_SET|pagcnt)
            self.write_cmd(COLHAD_SET|0x00)
            self.write_cmd(COLLAD_SET|0x00)
            if(pagcnt<8):
                self.write_data(self.buffer[(128*pagcnt):(128*pagcnt+128)])
            else:
                while (colcnt<128):
                    colcnt+=1
                    self.write_data(b"\x00")
            pagcnt+=1
            self.write_cmd(DISP_ONOFF|0x01)

    def clear(self):
        self.fill(0)
        self.show()

字库程序

ufont.py

__version__ = 3

import time
import struct

import framebuf

DEBUG = False

def timeit(f, *args, **kwargs):
    try:
        myname = str(f).split(' ')[1]
    except:
        myname = "UNKONW"

    def new_func(*args, **kwargs):
        if DEBUG:
            try:
                t = time.ticks_us()
                result = f(*args, **kwargs)
                delta = time.ticks_diff(time.ticks_us(), t)
                print('Function {} Time = {:6.3f}ms'.format(myname, delta / 1000))
            except AttributeError:
                t = time.perf_counter_ns()
                result = f(*args, **kwargs)
                delta = time.perf_counter_ns() - t
                print('Function {} Time = {:6.3f}ms'.format(myname, delta / 1000000))
            return result
        else:
            return f(*args, **kwargs)

    return new_func

class BMFont:
    @staticmethod
    def _list_to_byte(arr):
        b = 0
        for a in arr:
            b = (b << 1) + a
        return bytes([b])

    @timeit
    def _bit_list_to_byte_data(self, bit_list):
        """将点阵转换为字节数据
        Args:
            bit_list:
        Returns:
        """
        byte_data = b''
        for _col in bit_list:
            for i in range(0, len(_col), 8):
                byte_data += self._list_to_byte(_col[i:i + 8])
        return byte_data

    @timeit
    def __init__(self, font_file):
        self.font_file = font_file

        self.font = open(font_file, "rb", buffering=0xff)

        self.bmf_info = self.font.read(16)

        if self.bmf_info[0:2] != b"BM":
            raise TypeError("字体文件格式不正确: " + font_file)

        self.version = self.bmf_info[2]
        if self.version != 3:
            raise TypeError("字体文件版本不正确: " + str(self.version))

        self.map_mode = self.bmf_info[3]  # 映射方式
        self.start_bitmap = struct.unpack(">I", b'\x00' + self.bmf_info[4:7])[0]  # 位图开始字节
        self.font_size = self.bmf_info[7]  # 字体大小
        self.bitmap_size = self.bmf_info[8]  # 点阵所占字节

    @timeit
    def _to_bit_list(self, byte_data, font_size, *, _height=None, _width=None):
        """将字节数据转换为点阵数据
        Args:
            byte_data: 字节数据
            font_size: 字号大小
            _height: 字体原高度
            _width: 字体原宽度
        Returns:
        """
        _height = _height or self.font_size
        _width = _width or self.bitmap_size // self.font_size * 8
        new_bitarray = [[0 for j in range(font_size)] for i in range(font_size)]
        for _col in range(len(new_bitarray)):
            for _row in range(len(new_bitarray[_col])):
                _index = int(_col / (font_size / _height)) * _width + int(_row / (font_size / _width))
                new_bitarray[_col][_row] = byte_data[_index // 8] >> (7 - _index % 8) & 1
        return new_bitarray

    @timeit
    def _color_render(self, bit_list, color):
        """将二值点阵图像转换为 RGB565 彩色字节图像
        Args:
            bit_list:
            color:
        Returns:
        """
        color_array = b""
        for _col in range(len(bit_list)):
            for _row in range(len(bit_list)):
                color_array += struct.pack("H", self.font.read(2))[0]
            if word_code == target_code:
                return (mid - 16) >> 1
            elif word_code < target_code:
                end = mid - 2
            else:
                start = mid + 2
        return -1

    @timeit
    def get_bitmap(self, word):
        """获取点阵图
        Args:
            word: 字符
        Returns:
            bytes 字符点阵
        """
        index = self._get_index(word)
        if index == -1:
            return b'\xff\xff\xff\xff\xff\xff\xff\xff\xf0\x0f\xcf\xf3\xcf\xf3\xff\xf3\xff\xcf\xff?\xff?\xff\xff\xff' \
                   b'?\xff?\xff\xff\xff\xff'

        self.font.seek(self.start_bitmap + index * self.bitmap_size, 0)
        return self.font.read(self.bitmap_size)

    @timeit
    def text(self, display, string, x, y, color=1, *, font_size=None, reverse=False, clear=False, show=False,
             half_char=True, auto_wrap=False, **kwargs):
        """通过显示屏显示文字
        使用此函数显示文字，必须先确认显示对象是否继承与 framebuf.FrameBuffer。
        如果显示对象没有 clear 方法，需要自行调用 fill 清屏
        Args:
            display: 显示实例
            string: 字符串
            x: 字体左上角 x 轴
            y: 字体左上角 y 轴
            color: 颜色
            font_size: 字号
            reverse: 是否反转背景
            clear: 是否清除之前显示的内容
            show: 是否立刻显示
            half_char: 是否半字节显示 ASCII 字符
            auto_wrap: 自动换行
            **kwargs:
            Returns:
            None
        """
        font_size = font_size or self.font_size
        initial_x = x

        # 清屏
        try:
            display.clear() if clear else 0
        except AttributeError:
            print("请自行调用 display.fill(*) 清屏")

        for char in range(len(string)):
            # 是否自动换行
            if auto_wrap:
                if auto_wrap and ((x + font_size // 2 >= 128 and ord(string[char]) < 128 and half_char) or
                                  (x + font_size >= 128 and (not half_char or ord(string[char]) > 128))):
                    y += font_size
                    x = initial_x

            # 回车
            if string[char] == '\n':
                y += font_size
                x = initial_x
                continue
            # Tab
            elif string[char] == '\t':
                x = ((x // font_size) + 1) * font_size + initial_x % font_size
                continue

            # 其它的控制字符不显示
            elif ord(string[char]) < 16:
                continue

            # 超过范围的字符不会显示*
            if x > 128 or y > 64:
                continue

            byte_data = list(self.get_bitmap(string[char]))

            # 反转
            if reverse:
                for _pixel in range(len(byte_data)):
                    byte_data[_pixel] = ~byte_data[_pixel] & 0xff

            # 缩放和色彩*
            if color > 1 or font_size != self.font_size:
                bit_data = self._to_bit_list(byte_data, font_size)
                if color > 1:
                    display.blit(
                        framebuf.FrameBuffer(bytearray(self._color_render(bit_data, color)), font_size, font_size,
                                             framebuf.RGB565), x, y)
                else:
                    display.blit(
                        framebuf.FrameBuffer(bytearray(self._bit_list_to_byte_data(bit_data)), font_size, font_size,
                                             framebuf.MONO_HLSB), x, y)
            else:
                display.blit(framebuf.FrameBuffer(bytearray(byte_data), font_size, font_size, framebuf.MONO_HLSB), x, y)

            # 英文字符半格显示
            if ord(string[char]) < 128 and half_char:
                x += font_size // 2
            else:
                x += font_size

        display.show() if show else 0

    def char(self, char, color=1, font_size=None, reverse=False):
        """ 获取字体字节数据
        在没有继承 framebuf.FrameBuffer 的显示驱动,或者内存不足以将一整个屏幕载入缓存帧时
        可以直接获取单字的字节数据,局部更新
        Args:
            char: 单个字符
            color: 颜色
            font_size: 字体大小
            reverse: 反转
            Returns:
            bytearray
        """
        font_size = font_size or self.font_size
        byte_data = list(self.get_bitmap(char))

        # 反转
        if reverse:
            for _pixel in range(len(byte_data)):
                byte_data[_pixel] = ~byte_data[_pixel] & 0xff
        if color > 1 or font_size != self.font_size:
            bit_data = self._to_bit_list(byte_data, font_size)
            if color > 1:
                return self._color_render(bit_data, color)
            else:
                return self._bit_list_to_byte_data(bit_data)
        else:
            return bytearray(byte_data)
