代码来源: QQ群主786510434 群主分享

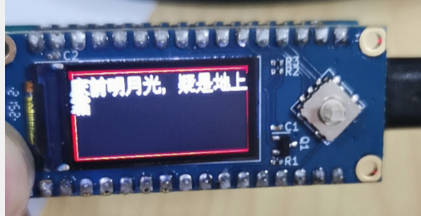

演示:
完整代码+字库:链接: https://pan.baidu.com/s/1MfOWSx7SK4UGovmD0HzPUQ?pwd=dckx 提取码: dckx
main.py
from machine import SPI,Pin,PWM import st7735 import time,random from bmpdecoder import bmpData,bmpFileData def initDisplay(): global display,tftVdd tftVdd = PWM(Pin(5),freq =1000,duty = 1023) display = st7735.TFT( SPI(1,baudrate=60000000, polarity=0, phase=0, sck=Pin(0),mosi=Pin(1),miso=Pin(9)), 10,2,3)#spi, aDC, aReset, aCS,ScreenSize = (160, 160) display.initr() display.invertcolor(True) display.rotation(1) display._offset = (1,26)#(26,1) display.fill(0) initDisplay() import zhFont2tft as font tftfont = font.Font16('font1616.ebin') tftfont.text(0,0,'中文测试,你好世界.hello world',display,color = [0,255,0],backgroundcolor = [255,0,0])
zhFont2tft.py
def getbin(inta: int, x: int) -> int: return (inta & (1<>x def rgb565(bgr): return (bgr[0]&0xf8|(bgr[1]&0xfc)>>5),((bgr[1]&0x1C)<>3) def chsC2enc(d): if 0x4e00<=d<=0x9fa5 or d < 128: return d if(d == 0xff0c): return 0x2c elif(d == 0x3002): return 0x2e elif(d == 0xff1a): return 0x3b elif(d == 0x201c or d == 0x201d): return 0x22 elif(d == 0x2019 or d == 0x2018): return 0x27 elif(d == 0x3010): return 0x5b elif(d == 0x3011): return 0x5d elif(d == 0xff08): return 0x28 elif(d == 0xff09): return 0x29 elif(d==0xff1b): return 0x3b elif(d == 0x3001): return 0xb7 elif(d == 0xff01): return 0x21 print(d,chr(d)) class Font16: def __init__(self,filename) -> None: self.bias = 0x4e00 self.h = 16 self.w = 16 #self.end = 0x9fa5 self.f = open(filename,'rb') if(self.f.read(3) != b'f16'): raise TypeError("!!!Font not support!!!") def text(self,x,y,data,display,width = 2,color = [255,255,255],backgroundcolor = [0,0,0],linecount = 12): color = bytearray(rgb565(color)) backgroundcolor = bytearray(rgb565(backgroundcolor)) i = 0 # 换字 p = y # 换行 for d in data: d = ord(d) d = chsC2enc(d) if 0< d = 0x4e00: self.f.seek((d-self.bias+128)*32 +3) fromD = x+p*25+i*width display._setwindowloc((x+i*self.w,p),(x+ i*self.w +self.w - 1, p + self.h - 1)) for charData in range(16): temp = self.f.read(1)[0] for index in range(8): if(getbin(temp,8-index)): display._writedata(color) else: display._writedata(backgroundcolor) temp = self.f.read(1)[0] for index in range(8): if(getbin(temp,8-index)): display._writedata(color) else: display._writedata(backgroundcolor) i = i+1 if i>= linecount: #print(i) p += 16 i = 0 def __del__(self): self.data.close()
